Thermal Break Profile
share to:Description

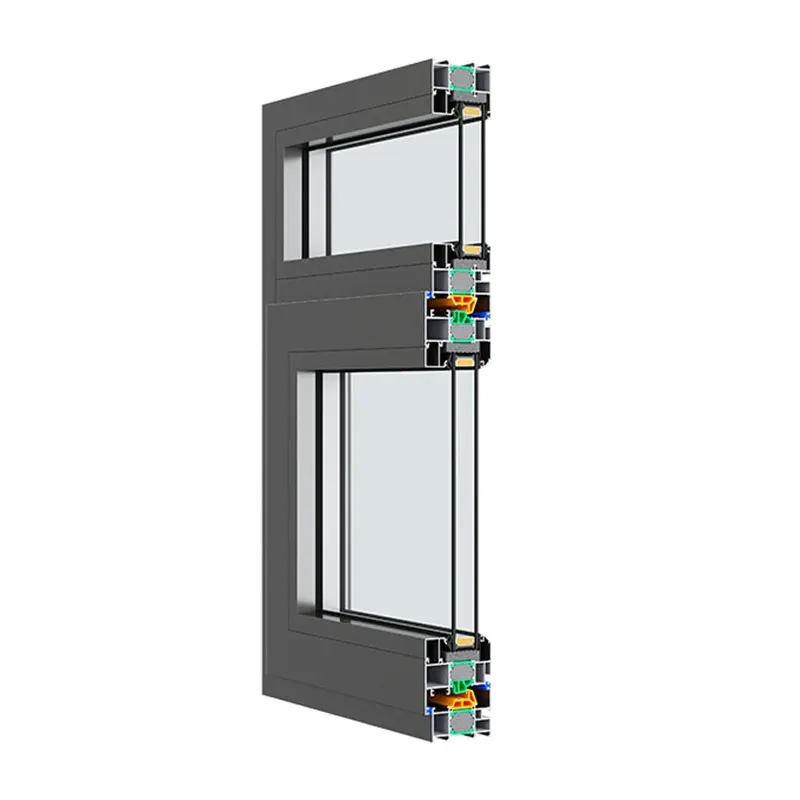

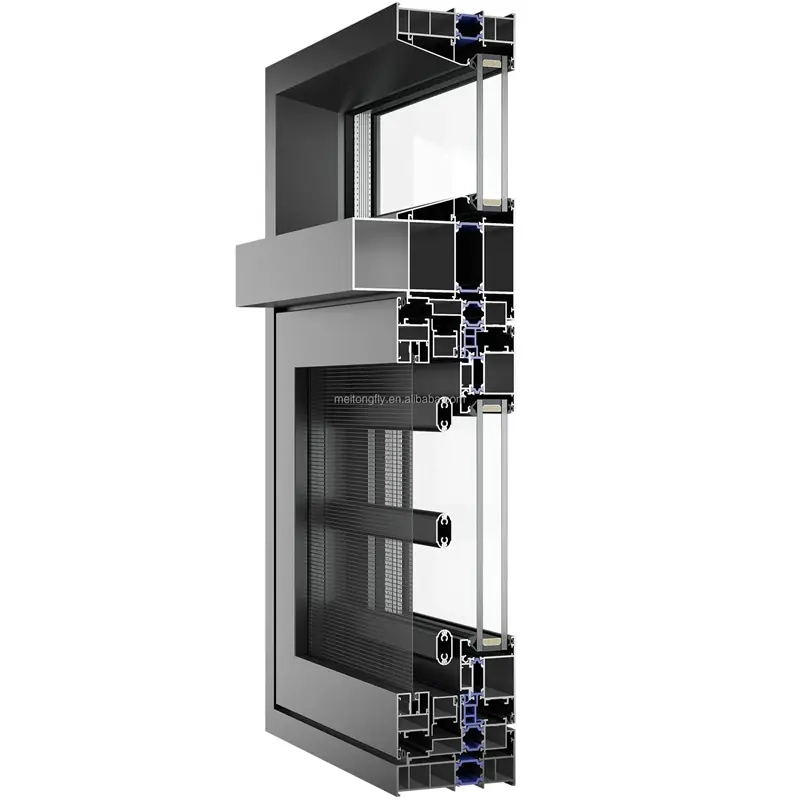

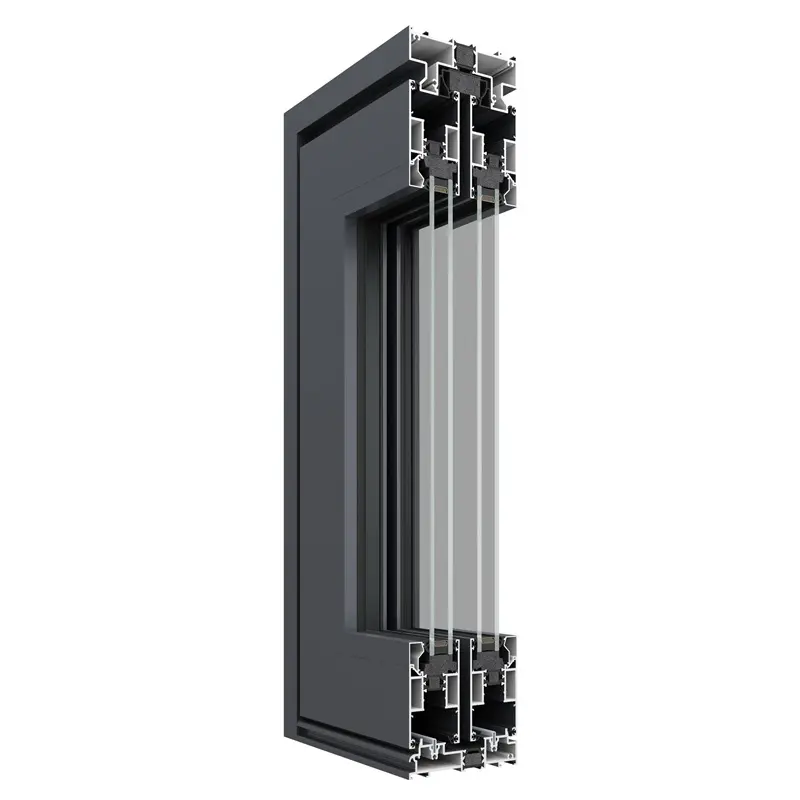

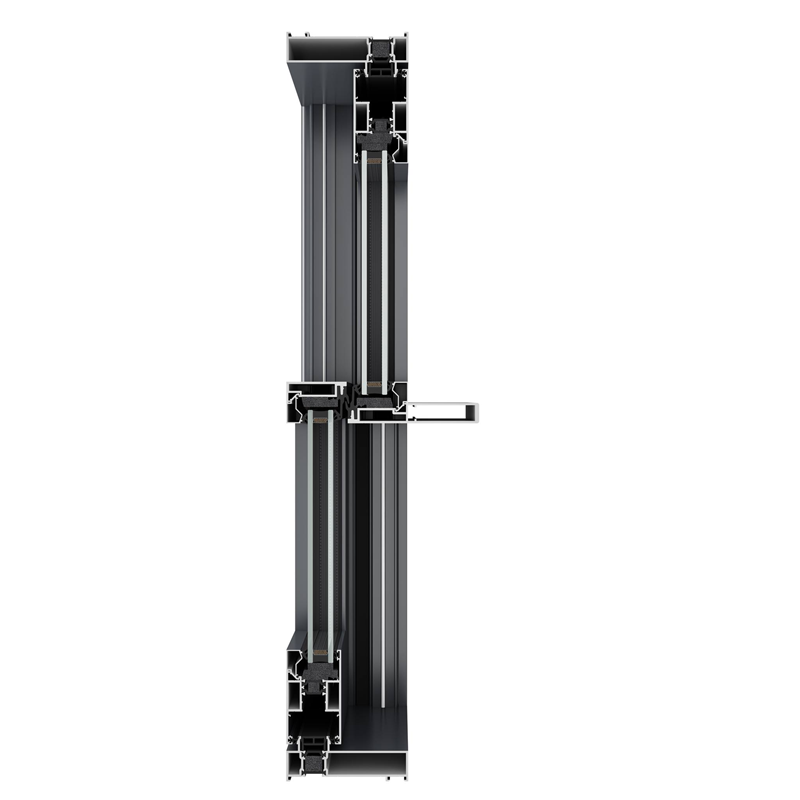

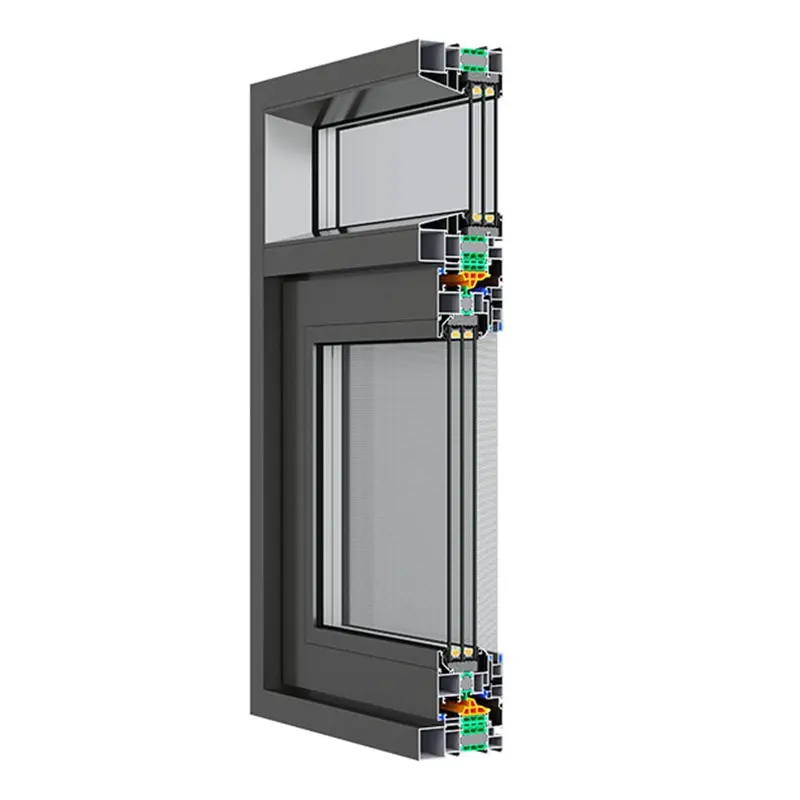

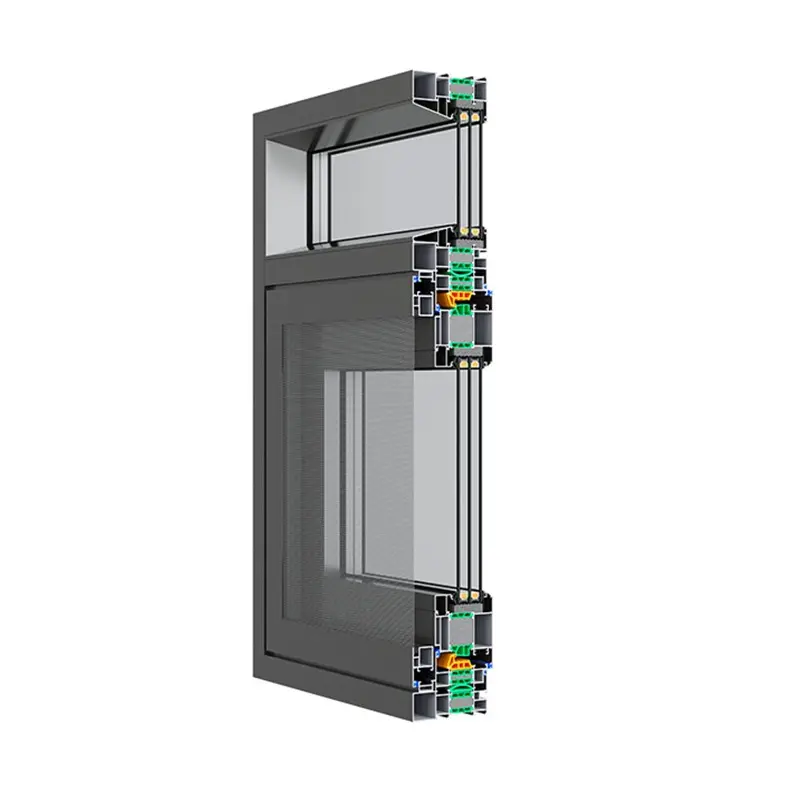

Insulated aluminum profiles are energy-efficient building profiles. By integrating a PA66 nylon insulation strip into the center of the profile, an insulating layer is created between the inner and outer aluminum alloy panels, effectively blocking heat transfer. The combination of the robustness of aluminum alloy with excellent thermal insulation performance (K-value 1.8-3.0 W/(m² K)) makes these profiles suitable for insulated doors, windows, curtain walls, etc., significantly reducing the energy consumption of buildings.
Material Details
|
Alloy |
Ya |
Fe |
Cu |
Mn |
Mg |
Kr |
Zn |
Ti |
Impurity |
Ai |
|
|
Uint |
Total |
||||||||||
|
6063 |
0.2-0.6 |
<0.35 |
<0.1 |
<0.1 |
0.45-0.9 |
<0.1 |
<0.1 |
<0.1 |
<0.05 |
<0.05 |
Excess |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
<0.15 |
0.8-1.2 |
0.04-0.35 |
<0.25 |
<0.15 |
<0.05 |
<0.05 |
Excess |
|
6005 |
0.6-0.9 |
<0.35 |
<0.1 |
<0.1 |
0.4-0.9 |
0.1 |
<0.1 |
<0.1 |
<0.05 |
<0.05 |
Excess |
|
6060 |
0.3-0.6 |
0.35-0.6 |
0.1-0.3 |
<0.1 |
<0.1 |
<0.15 |
<0.05 |
<0.1 |
<0.05 |
<0.05 |
Excess |
Application Scenarios
1. Green Buildings
Ultra-low energy passive window and door systems
Curtain walls for luxury residential and commercial buildings
Building envelopes for extreme cold climates
2. Specific Industrial Sectors
Cold chain refrigerated warehouses
Electronics clean rooms
High-speed rail stations/airports
3. Energy Retrofits
Energy-saving retrofits for existing doors and windows
Support structures for building-integrated photovoltaic panels
Building envelope systems for constant temperature and humidity laboratories
Thermal break aluminum profile production line
Thermal break aluminum profile production line is applied for producing thermal break aluminum profiles,including 4 sets of machines:knurling machine,strip
insertion/assembly machine,rolling machine and shear tester.
Why choose insulated aluminum profiles?
Insulated aluminum profiles offer the following advantages and are frequently used in the production of windows, doors, and curtain walls:
1. Excellent thermal insulation.
2. High-quality sound insulation.
3. Optimal frost and condensation resistance.
4. High strength.
5. Optimal airtightness and watertightness.
6.Three-chamber construction.
7. Advanced strip feed technology ensures an optimized structure, robust construction, excellent rigidity, and excellent thermal insulation.
8. Available in anodized, electrophoretic, powder-coated, and fluoro-resin coated finishes. A wide range of finishes, excellent performance, and optimal sound and energy insulation.
